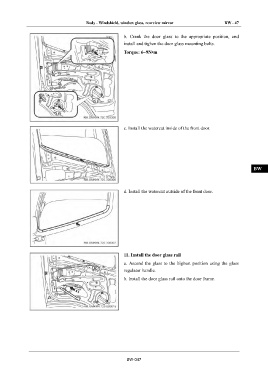

Body - Windshield, window glass, rearview mirror BW - 47
b. Crank the door glass to the appropriate position, and IN
install and tighen the door glass mounting bolts.
Torque: 6~9N•m DI
EG
TR
AX
FR
c. Install the watercut inside of the front door.
ST
BR
BW
EL
d. Install the watercut outside of the front door.
11. Install the door glass rail
a. Ascend the glass to the highest position using the glass
regulator handle.
b. Install the door glass rail onto the door frame.
BW-047
