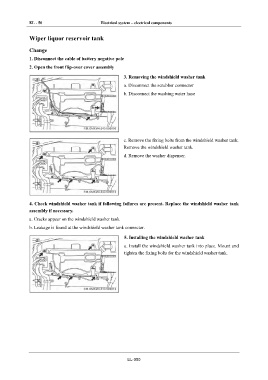

Page 1474 - Foton Workshop Manual - Auman EST-M
P. 1474
EL - 50 Electrical system – electrical components
IN
Wiper liquor reservoir tank
DI Change
1. Disconnect the cable of battery negative pole
EG 2. Open the front flip-over cover assembly
3. Removing the windshield washer tank
TR a. Disconnect the scrubber connector
b. Disconnect the washing water hose
AX
FR
ST
c. Remove the fixing bolts from the windshield washer tank.
Remove the windshield washer tank.
BR
d. Remove the washer dispenser.
BW
EL
4. Check windshield washer tank if following failures are present. Replace the windshield washer tank
assembly if necessary.
a. Cracks appear on the windshield washer tank.
b. Leakage is found at the windshield washer tank connector.
5. Installing the windshield washer tank
a. Install the windshield washer tank into place. Mount and
tighten the fixing bolts for the windshield washer tank.
EL-050
