EL - 112 Electrical system – electrical components
IN

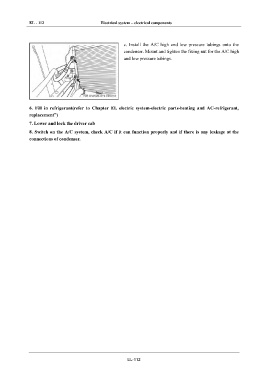

c. Install the A/C high and low pressure tubings onto the
DI condenser. Mount and tighten the fixing nut for the A/C high
and low pressure tubings.
EG
TR
AX
6. Fill in refrigerant(refer to Chapter EL electric system-electric parts-heating and AC-refrigerant,
replacement”)
FR
7. Lower and lock the driver cab
8. Switch on the A/C system, check A/C if it can function properly and if there is any leakage at the
ST
connections of condenser.
BR
BW
EL
EL-112
