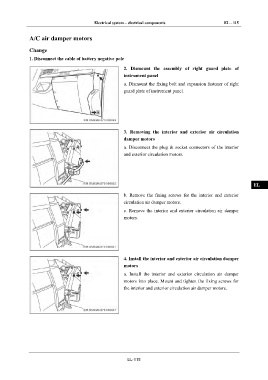

A/C air damper motors
Change DI
1. Disconnect the cable of battery negative pole
2. Dismount the assembly of right guard plate of EG
instrument panel
a. Dismount the fixing bolt and expansion fastener of right TR
guard plate of instrument panel.
AX
FR
3. Removing the interior and exterior air circulation
ST
damper motors
a. Disconnect the plug & socket connectors of the interior
BR
and exterior circulation motors.
BW
EL
b. Remove the fixing screws for the interior and exterior
circulation air damper motors.
c. Remove the interior and exterior circulation air damper
motors.
4. Install the interior and exterior air circulation damper
motors
a. Install the interior and exterior circulation air damper
motors into place. Mount and tighten the fixing screws for
the interior and exterior circulation air damper motors.
