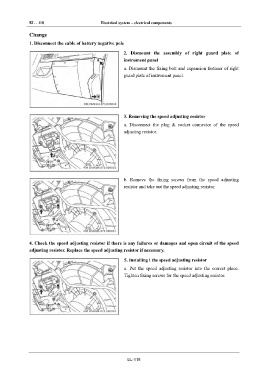

EL - 118 Electrical system – electrical components

IN Change

1. Disconnect the cable of battery negative pole
DI 2. Dismount the assembly of right guard plate of
instrument panel
EG a. Dismount the fixing bolt and expansion fastener of right
guard plate of instrument panel.

TR

AX

3. Removing the speed adjusting resistor
FR
a. Disconnect the plug & socket connector of the speed

adjusting resistor.
ST

BR

BW

b. Remove the fixing screws from the speed adjusting
EL resistor and take out the speed adjusting resistor.

4. Check the speed adjusting resistor if there is any failures or damages and open circuit of the speed
adjusting resistor. Replace the speed adjusting resistor if necessary.

5. Installing l the speed adjusting resistor
a. Put the speed adjusting resistor into the correct place.
Tighten fixing screws for the speed adjusting resistor.

EL-118
