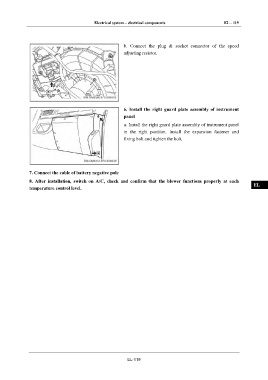

Electrical system – electrical components EL - 119
IN
b. Connect the plug & socket connector of the speed
adjusting resistor. DI
EG
TR
AX
6. Install the right guard plate assembly of instrument
panel
FR
a. Install the right guard plate assembly of instrument panel
in the right position. Install the expansion fastener and
ST
fixing bolt and tighten the bolt.
BR
BW
7. Connect the cable of battery negative pole
8. After installation, switch on A/C, check and confirm that the blower functions properly at each
EL
temperature control level.
EL-119
