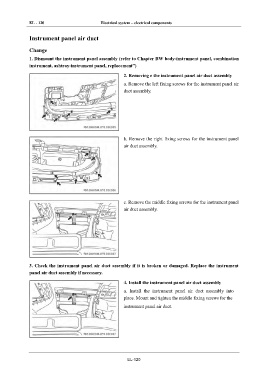

EL - 120 Electrical system – electrical components
IN
Instrument panel air duct
DI Change
1. Dismount the instrument panel assembly (refer to Chapter BW body-instrument panel, combination
instrument, ashtray-instrument panel, replacement”)
EG
2. Removing e the instrument panel air duct assembly
TR a. Remove the left fixing screws for the instrument panel air
duct assembly.
AX
FR
ST
b. Remove the right fixing screws for the instrument panel
air duct assembly.
BR
BW
EL
c. Remove the middle fixing screws for the instrument panel
air duct assembly.
3. Check the instrument panel air duct assembly if it is broken or damaged. Replace the instrument
panel air duct assembly if necessary.
4. Install the instrument panel air duct assembly
a. Install the instrument panel air duct assembly into
place. Mount and tighten the middle fixing screws for the
instrument panel air duct.
EL-120
