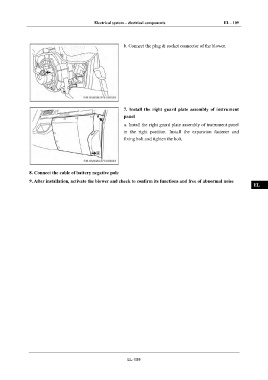

Electrical system – electrical components EL - 109
IN
b. Connect the plug & socket connector of the blower.
DI
EG
TR
AX
7. Install the right guard plate assembly of instrument
panel
FR
a. Install the right guard plate assembly of instrument panel
in the right position. Install the expansion fastener and
ST
fixing bolt and tighten the bolt.
BR
BW
8. Connect the cable of battery negative pole
9. After installation, activate the blower and check to confirm its functions and free of abnormal noise
EL
EL-109
