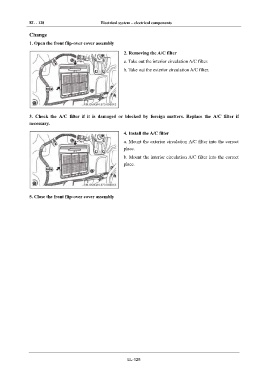

EL - 128 Electrical system – electrical components
IN Change
1. Open the front flip-over cover assembly
DI 2. Removing the A/C filter
a. Take out the interior circulation A/C filter.
EG b. Take out the exterior circulation A/C filter.
TR
AX
3. Check the A/C filter if it is damaged or blocked by foreign matters. Replace the A/C filter if
FR
necessary.
4. Install the A/C filter
ST
a. Mount the exterior circulation A/C filter into the correct
place.
BR
b. Mount the interior circulation A/C filter into the correct
place.
BW
EL
5. Close the front flip-over cover assembly
EL-128
