EL - 126 Electrical system – electrical components
IN

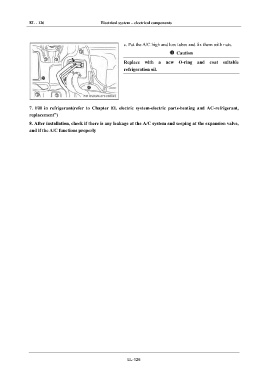

c. Put the A/C high and low tubes and fix them with nuts.
DI Caution
Replace with a new O-ring and coat suitable
EG refrigeration oil.
TR
AX
7. Fill in refrigerant(refer to Chapter EL electric system-electric parts-heating and AC-refrigerant,
replacement”)
FR
8. After installation, check if there is any leakage at the A/C system and seeping at the expansion valve,
and if the A/C functions properly
ST
BR
BW
EL
EL-126
