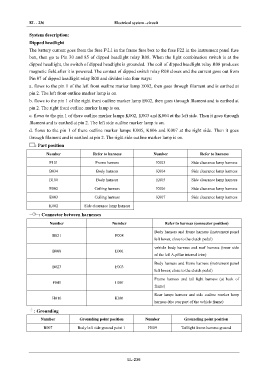

EL - 236 Electrical system –circuit

IN System description:

Dipped headlight
DI The battery current goes from the fuse F\L1 in the frame fuse box to the fuse F22 in the instrument panel fuse
box, then go to Pin 30 and 85 of dipped headlight relay R08. When the light combination switch is at the

dipped headlight, the switch of dipped headlight is grounded. The coil of dipped headlight relay R08 produces
EG
magnetic field after it is powered. The contact of dipped switch relay R08 closes and the current goes out from
Pin 87 of dipped headlight relay R08 and divides into four ways:
TR a. flows to the pin 1 of the left front outline marker lamp E002, then goes through filament and is earthed at
pin 2. The left front outline marker lamp is on.

AX b. flows to the pin 1 of the right front outline marker lamp E002, then goes through filament and is earthed at
pin 2. The right front outline marker lamp is on.

c. flows to the pin 1 of there outline marker lamps K002, K003 and K004 at the left side. Then it goes through
FR
filament and is earthed at pin 2. The left side outline marker lamp is on.

d. flows to the pin 1 of there outline marker lamps K005, K006 and K007 at the right side. Then it goes
ST
through filament and is earthed at pin 2. The right side outline marker lamp is on.

: Part position
BR
Number Refer to harness Number Refer to harness

F101 Frame harness K003 Side clearance lamp harness
BW
B034 Body harness K004 Side clearance lamp harness

B100 Body harness K005 Side clearance lamp harness
EL
E002 Ceiling harness K006 Side clearance lamp harness

E003 Ceiling harness K007 Side clearance lamp harness

K002 Side clearance lamp harness

: Connector between harnesses

Number Number Refer to harness (connector position)

Body harness and frame harness (instrument panel
B021 F008
left lower, close to the clutch pedal)

vehicle body harness and roof harness (inner side
B008 E001
of the left A-pillar internal trim)

Body harness and frame harness (instrument panel
B023 F003
left lower, close to the clutch pedal)

Frame harness and tail light harness (at back of
F041 H001
frame)
Rear lamps harness and side outline marker lamp
H010 K001
harness (the rear part of the vehicle frame)
: Grounding

Number Grounding point position Number Grounding point position
B007 Body left side ground point 1 H009 Taillight frame harness ground

EL-236
