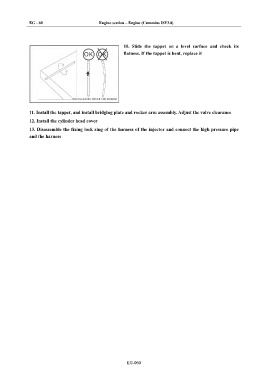

Page 576 - Foton Workshop Manual - Auman EST-M

EG - 60 Engine section – Engine (Cummins ISF3.8)

10. Slide the tappet on a level surface and check its
flatness. If the tappet is bent, replace it

11. Install the tappet, and install bridging plate and rocker arm assembly. Adjust the valve clearance
12. Install the cylinder head cover

13. Disassemble the fixing lock ring of the harness of the injector and connect the high pressure pipe
and the harness

EG-060
