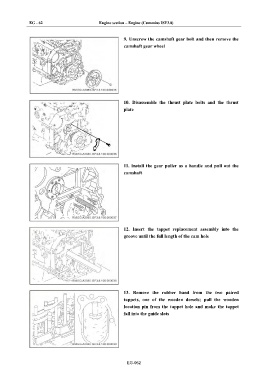

Page 578 - Foton Workshop Manual - Auman EST-M

EG - 62 Engine section – Engine (Cummins ISF3.8)

9. Unscrew the camshaft gear bolt and then remove the
camshaft gear wheel

10. Disassemble the thrust plate bolts and the thrust
plate

11. Install the gear puller as a handle and pull out the
camshaft

12. Insert the tappet replacement assembly into the
groove until the full length of the cam hole

13. Remove the rubber band from the two paired
tappets, one of the wooden dowels; pull the wooden
location pin from the tappet hole and make the tappet
fall into the guide slots

EG-062
