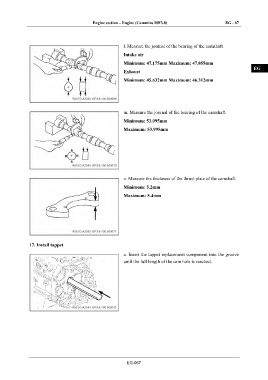

Engine section – Engine (Cummins ISF3.8) EG - 67

IN

l. Measure the journal of the bearing of the camshaft.
DI
Intake air

Minimum: 47.175mm Maximum: 47.855mm
EG
Exhaust

Minimum: 45.632mm Maximum: 46.312mm
TR

AX

m. Measure the journal of the bearing of the camshaft.
Minimum: 53.095mm FR

Maximum: 53.995mm
ST

BR

BW

n. Measure the thickness of the thrust plate of the camshaft.
Minimum: 5.2mm EL
Maximum: 5.4mm

17. Install tappet

a. Insert the tappet replacement component into the groove
until the full length of the cam hole is reached.

EG-067
