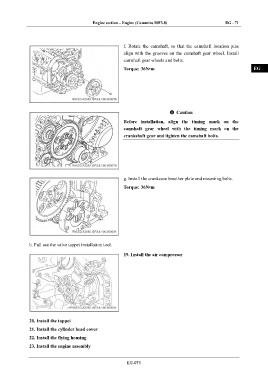

Engine section – Engine (Cummins ISF3.8) EG - 71

IN

f. Rotate the camshaft, so that the camshaft location pins
DI
align with the grooves on the camshaft gear wheel. Install
camshaft gear wheels and bolts.
Torque: 36N•m EG

TR

AX
Caution
FR
Before installation, align the timing mark on the
camshaft gear wheel with the timing mark on the
crankshaft gear and tighten the camshaft bolts. ST

BR

BW

g. Install the crankcase breather plate and mounting bolts.
Torque: 36N•m EL

h. Pull out the valve tappet installation tool.

19. Install the air compressor

20. Install the tappet
21. Install the cylinder head cover
22. Install the flying housing

23. Install the engine assembly

EG-071
