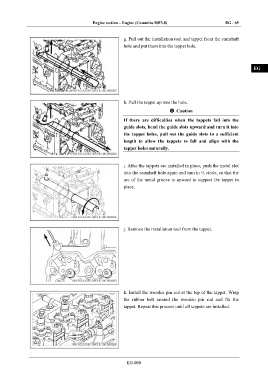

Engine section – Engine (Cummins ISF3.8) EG - 69

IN

g. Pull out the installation tool and tappet from the camshaft

hole and put them into the tappet hole.
DI

EG

TR

h. Pull the tappet up into the hole. AX
Caution
If there are difficulties when the tappets fall into the FR
guide slots, bend the guide slots upward and turn it into
the tappet holes, pull out the guide slots to a sufficient ST
length to allow the tappets to fall and align with the

tappet holes naturally.
BR

i. After the tappets are installed in place, push the metal slot
BW
into the camshaft hole again and turn in ½ circle, so that the

arc of the metal groove is upward to support the tappet in
EL
place.

j. Remove the installation tool from the tappet.

k. Install the wooden pin rod at the top of the tappet. Wrap
the rubber belt around the wooden pin rod and fix the

tappet. Repeat this process until all tappets are installed.

EG-069
