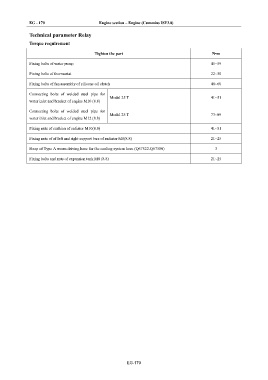

Page 686 - Foton Workshop Manual - Auman EST-M

EG - 170 Engine section – Engine (Cummins ISF3.8)

Technical parameter Relay
Torque requirement

Tighten the part N•m

Fixing bolts of water pump 45~59

Fixing bolts of thermostat 22~30

Fixing bolts of fan assembly of silicone oil clutch 40~60

Connecting bolts of welded steel pipe for
Model 25 T 41~51
water inlet and bracket of engine M10 (8.8)
Connecting bolts of welded steel pipe for
Model 25 T 73~89
water inlet and bracket of engine M12 (8.8)

Fixing nuts of cushion of radiator M10(8.8) 41~51

Fixing nuts of of left and right support bars of radiator M8(8.8) 21~25

Hoop of Type A worm driving hose for the cooling system hose (Q67522-Q67580) 3

Fixing bolts and nuts of expansion tank M8 (8.8) 21~25

EG-170
