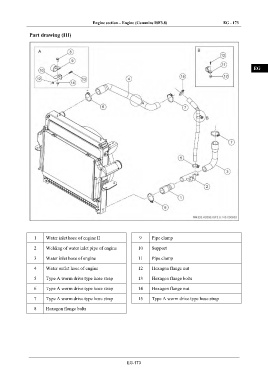

Engine section – Engine (Cummins ISF3.8) EG - 173
Part drawing (III) IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Water inlet hose of engine II 9 Pipe clamp
2 Welding of water inlet pipe of engine 10 Support
3 Water inlet hose of engine 11 Pipe clamp
4 Water outlet hose of engine 12 Hexagon flange nut
5 Type A worm drive type hose strap 13 Hexagon flange bolts
6 Type A worm drive type hose strap 14 Hexagon flange nut
7 Type A worm drive type hose strap 15 Type A worm drive type hose strap
8 Hexagon flange bolts
