EG - 172 Engine section – Engine (Cummins ISF3.8)

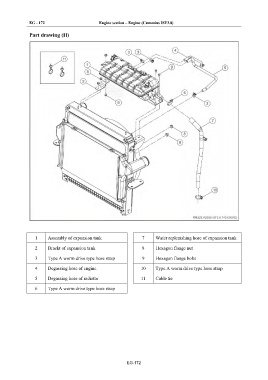

Part drawing (II)

1 Assembly of expansion tank 7 Water replenishing hose of expansion tank

2 Brackt of expansion tank 8 Hexagon flange nut

3 Type A worm drive type hose strap 9 Hexagon flange bolts

4 Degassing hose of engine 10 Type A worm drive type hose strap

5 Degassing hose of radiator 11 Cable tie
6 Type A worm drive type hose strap

EG-172
