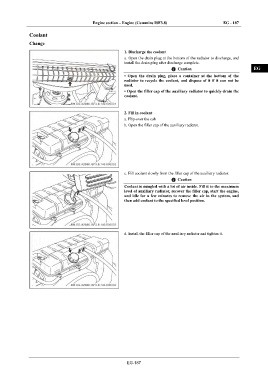

Engine section – Engine (Cummins ISF3.8) EG - 187

Coolant IN
Change

1. Discharge the coolant DI
a. Open the drain plug at the bottom of the radiator to discharge, and
install the drain plug after discharge complete.
Caution EG
• Open the drain plug, place a container at the bottom of the
radiator to recycle the coolant, and dispose of it if it can not be
used. TR
• Open the filler cap of the auxiliary radiator to quickly drain the
coolant.
AX

2. Fill in coolant
a. Flip-over the cab FR
b. Open the filler cap of the auxiliary radiator.

ST

BR

BW

c. Fill coolant slowly from the filler cap of the auxiliary radiator.
Caution
Coolant is mingled with a lot of air inside. Fill it to the maximum EL
level of auxiliary radiator, recover the filler cap, start the engine,
and idle for a few minutes to remove the air in the system, and
then add coolant to the specified level position.

d. Install the filler cap of the auxiliary radiator and tighten it.

EG-187
