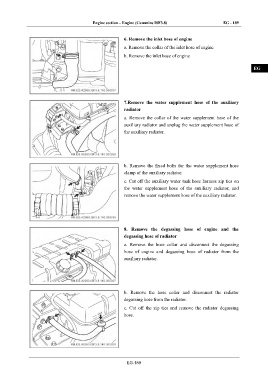

Engine section – Engine (Cummins ISF3.8)                  EG - 189

                                                                                                                  IN
                                                        6. Remove the inlet hose of engine

                                                        a. Remove the collar of the inlet hose of engine
                                                                                                                  DI
                                                        b. Remove the inlet hose of engine


                                                                                                                  EG


                                                                                                                  TR

                                                        7.Remove  the  water  supplement  hose  of  the  auxiliary   AX
                                                        radiator

                                                        a. Remove the  collar of the water supplement  hose of the   FR
                                                        auxiliary radiator and unplug the water supplement hose of
                                                        the auxiliary radiator.
                                                                                                                  ST



                                                                                                                  BR


                                                        b.  Remove  the  fixed  bolts  for  the  water  supplement  hose
                                                                                                                  BW
                                                        clamp of the auxiliary radiator.

                                                        c. Cut off the auxiliary water tank hose harness zip ties on
                                                                                                                  EL
                                                        the  water  supplement  hose  of  the  auxiliary  radiator,  and

                                                        remove the water supplement hose of the auxiliary radiator.






                                                        8.  Remove  the  degassing  hose  of  engine  and  the
                                                        degassing hose of radiator

                                                        a.  Remove  the  hose  collar  and  disconnect  the  degassing
                                                        hose  of  engine  and  degassing  hose  of  radiator  from  the
                                                        auxiliary radiator.




                                                        b.  Remove  the  hose  collar  and  disconnect  the  radiator
                                                        degassing hose from the radiator.

                                                        c.  Cut  off  the  zip  ties  and  remove  the  radiator  degassing
                                                        hose.






                                                         EG-189
