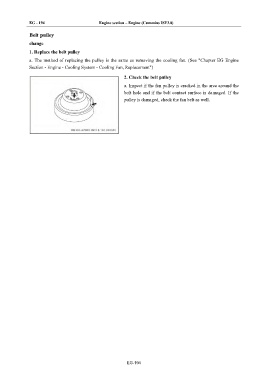

Page 710 - Foton Workshop Manual - Auman EST-M

EG - 194 Engine section – Engine (Cummins ISF3.8)

Belt pulley
change
1. Replace the belt pulley

a. The method of replacing the pulley is the same as removing the cooling fan. (See "Chapter EG Engine
Section - Engine - Cooling System - Cooling Fan, Replacement")
2. Check the belt pulley

a. Inspect if the fan pulley is cracked in the area around the
bolt hole and if the belt contact surface is damaged. If the
pulley is damaged, check the fan belt as well.

EG-194
