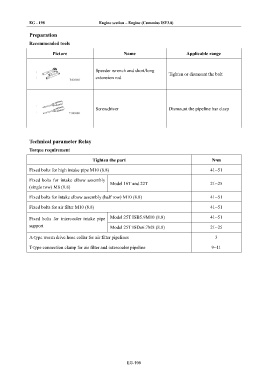

EG - 198 Engine section – Engine (Cummins ISF3.8)
Preparation
Recommended tools
Picture Name Applicable range
Speeder wrench and short/long
Tighten or dismount the bolt
extension rod
Screwdriver Dismount the pipeline bar clasp
Technical parameter Relay
Torque requirement
Tighten the part N•m
Fixed bolts for high intake pipe M10 (8.8) 41~51
Fixed bolts for intake elbow assembly
Model 16T and 22T 21~25
(single row) M8 (8.8)
Fixed bolts for intake elbow assembly (half row) M10 (8.8) 41~51
Fixed bolts for air filter M10 (8.8) 41~51
Fixed bolts for intercooler intake pipe Model 25T ISB5.9M10 (8.8) 41~51
support Model 25T ISDe6.7M8 (8.8) 21~25
A-type worm drive hose collar for air filter pipelines 3
T-type connection clamp for air filter and intercooler pipeline 9~11
EG-198
