EG - 196 Engine section – Engine (Cummins ISF3.8)

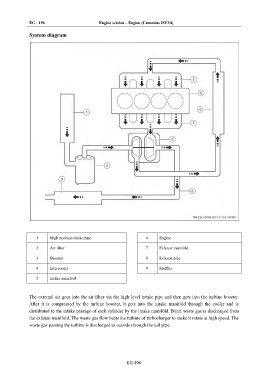

System diagram

1 High position intake pipe 6 Engine
2 Air filter 7 Exhaust manifold

3 Booster 8 Exhaust pipe

4 Intercooler 9 Muffler

5 Intake manifold

The external air goes into the air filter via the high level intake pipe and then gets into the turbine booster.
After it is compressed by the turbine booster, it gets into the intake manifold through the cooler and is
distributed to the intake passage of each cylinder by the intake manifold. Burnt waste gas is discharged from
the exhaust manifold. The waste gas flow beats the turbine of turbocharger to make it rotate at high speed. The
waste gas passing the turbine is discharged to outside through the tail pipe.

EG-196
