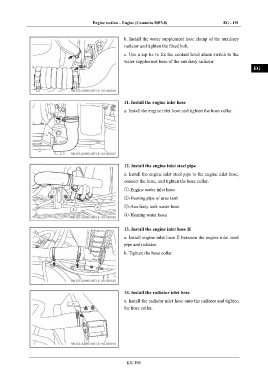

Engine section – Engine (Cummins ISF3.8)                  EG - 191


                                                                                                                  IN
                                                        b. Install the water supplement hose clamp of the auxiliary

                                                        radiator and tighten the fixed bolt.
                                                                                                                  DI
                                                        c. Use a zip tie to fix the coolant level alarm switch to the

                                                        water supplement hose of the auxiliary radiator.
                                                                                                                  EG


                                                                                                                  TR

                                                        11. Install the engine inlet hose                         AX

                                                        a. Install the engine inlet hose and tighten the hose collar.
                                                                                                                  FR


                                                                                                                  ST


                                                                                                                  BR


                                                        12. Install the engine inlet steel pipe                   BW

                                                        a. Install the engine inlet steel pipe to the engine inlet hose,
                                                        connect the hose, and tighten the hose collar.
                                                                                                                  EL
                                                        ①-Engine water inlet hose

                                                        ②-Heating pipe of urea tank

                                                        ③-Auxiliary tank water hose

                                                        ④-Heating water hose

                                                        13. Install the engine inlet hose II

                                                        a. Install engine inlet hose II between the engine inlet steel
                                                        pipe and radiator.

                                                        b. Tighten the hose collar.




                                                        14. Install the radiator inlet hose

                                                        a. Install the radiator inlet hose onto the radiator and tighten
                                                        the hose collar.








                                                         EG-191
