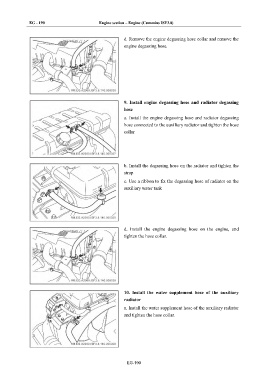

EG - 190                       Engine section – Engine (Cummins ISF3.8)


                                                        d. Remove the engine degassing hose collar and remove the
                                                        engine degassing hose.











                                                        9. Install engine degassing  hose and radiator degassing
                                                        hose

                                                        a. Install the engine degassing hose and radiator degassing
                                                        hose connected to the auxiliary radiator and tighten the hose
                                                        collar





                                                        b. Install the degassing hose on the radiator and tighten the
                                                        strap

                                                        c. Use a ribbon to fix the degassing hose of radiator on the
                                                        auxiliary water tank







                                                        d.  Install  the  engine  degassing  hose  on  the  engine,  and
                                                        tighten the hose collar.











                                                        10.  Install  the  water  supplement  hose  of  the  auxiliary
                                                        radiator

                                                        a. Install the water supplement hose of the auxiliary radiator
                                                        and tighten the hose collar.








                                                         EG-190
