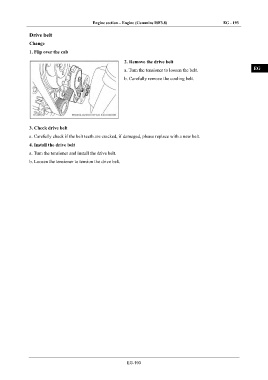

Page 709 - Foton Workshop Manual - Auman EST-M

Engine section – Engine (Cummins ISF3.8) EG - 193

Drive belt IN
Change
1. Flip over the cab DI

2. Remove the drive belt
EG
a. Turn the tensioner to loosen the belt.

b. Carefully remove the cooling belt.
TR

AX

FR
3. Check drive belt

a. Carefully check if the belt teeth are cracked, if damaged, please replace with a new belt. ST
4. Install the drive belt

a. Turn the tensioner and install the drive belt. BR

b. Loosen the tensioner to tension the drive belt.
BW

EL

EG-193
