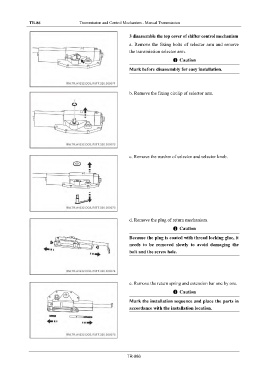

Page 900 - Foton Workshop Manual - Auman EST-M

TR-86 Transmission and Control Mechanism - Manual Transmission

3 disassemble the top cover of shifter control mechanism

a. Remove the fixing bolts of selector arm and remove
the transmission selector arm.
Caution
Mark before disassembly for easy installation.

b. Remove the fixing circlip of selector arm.

c. Remove the washer of selector and selector knob.

d. Remove the plug of return mechanism.
Caution

Because the plug is coated with thread locking glue, it
needs to be removed slowly to avoid damaging the
bolt and the screw hole.

e. Remove the return spring and extension bar one by one.
Caution
Mark the installation sequence and place the parts in
accordance with the installation location.

TR-086
