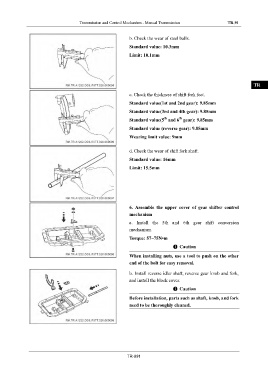

Transmission and Control Mechanism - Manual Transmission TR-91

IN
b. Check the wear of steel balls.

Standard value: 10.3mm
DI
Limit: 10.1mm

EG

TR

c. Check the thickness of shift fork feet.
Standard value(1st and 2nd gear): 9.85mm AX
Standard value(3rd and 4th gear): 9.85mm
th
th
Standard value(5 and 6 gear): 9.85mm FR
Standard value (reverse gear): 9.85mm
ST
Wearing limit value: 9mm

d. Check the wear of shift fork shaft. BR
Standard value: 16mm

Limit: 15.5mm BW

EL

6. Assemble the upper cover of gear shifter control
mechanism

a. Install the 5th and 6th gear shift conversion

mechanism.
Torque: 57~75N•m

Caution

When installing nuts, use a tool to push on the other

end of the bolt for easy removal.

b. Install reverse idler shaft, reverse gear knob and fork,

and install the block cover.

Caution

Before installation, parts such as shaft, knob, and fork
need to be thoroughly cleaned.

TR-091
