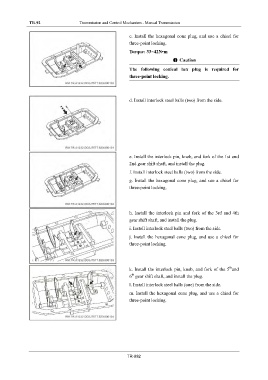

TR-92 Transmission and Control Mechanism - Manual Transmission

c. Install the hexagonal cone plug, and use a chisel for
three-point locking.
Torque: 33~42N•m

Caution
The following conical hex plug is required for
three-point locking.

d. Install interlock steel balls (two) from the side.

e. Install the interlock pin, knob, and fork of the 1st and
2nd gear shift shaft, and install the plug.
f. Install interlock steel balls (two) from the side.

g. Install the hexagonal cone plug, and use a chisel for
three-point locking.

h. Install the interlock pin and fork of the 3rd and 4th
gear shift shaft, and install the plug.

i. Install interlock steel balls (two) from the side.
j. Install the hexagonal cone plug, and use a chisel for
three-point locking.

th
k. Install the interlock pin, knob, and fork of the 5 and
th
6 gear shift shaft, and install the plug.
l. Install interlock steel balls (one) from the side.

m. Install the hexagonal cone plug, and use a chisel for
three-point locking.

TR-092
