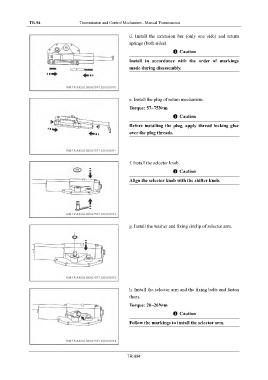

TR-94 Transmission and Control Mechanism - Manual Transmission

d. Install the extension bar (only one side) and return
springs (both sides).
Caution

Install in accordance with the order of markings
made during disassembly.

e. Install the plug of return mechanism.
Torque: 57~75N•m
Caution

Before installing the plug, apply thread locking glue
over the plug threads.

f. Install the selector knob.
Caution

Align the selector knob with the shifter knob.

g. Install the washer and fixing circlip of selector arm.

h. Install the selector arm and the fixing bolts and fasten
them.
Torque: 20~26N•m
Caution
Follow the markings to install the selector arm.

TR-094
