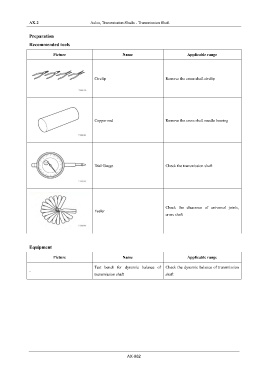

AX-2 Axles, Transmission Shafts - Transmission Shaft
Preparation
Recommended tools
Picture Name Applicable range
Circlip Remove the cross shaft circlip
Copper rod Remove the cross shaft needle bearing
Dial Gauge Check the transmission shaft
Check the clearance of universal joints,
Feeler
cross shaft
Equipment
Picture Name Applicable range
Test bench for dynamic balance of Check the dynamic balance of transmission
-
transmission shaft shaft
AX-002
