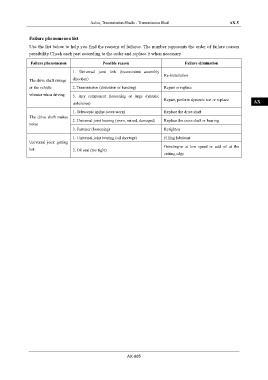

Page 917 - Foton Workshop Manual - Auman EST-M

Axles, Transmission Shafts - Transmission Shaft AX-5

IN
Failure phenomenon list

Use the list below to help you find the reasons of failures. The number represents the order of failure reason
DI
possibility Check each part according to the order and replace it when necessary

Failure phenomenon Possible reason Failure elimination
EG
1. Universal joint fork (inconsistent assembly Re-installation
direction)
The drive shaft swings
TR
or the vehicle 2. Transmission (distortion or bending) Repair or replace
vibrates when driving
3. Any component (loosening or large dynamic
Repair, perform dynamic test or replace AX
unbalance)

1. Telescopic spline (over-worn) Replace the drive shaft
The drive shaft makes FR
2. Universal joint bearing (worn, seized, damaged) Replace the cross shaft or bearing
noise
3. Fastener (loosening) Retighten
ST
1. Universal joint bearing (oil shortage) Filling lubricant
Universal joint getting
Grinding-in at low speed or add oil at the
hot 2. Oil seal (too tight)
cutting edge BR

BW

EL

AX-005
