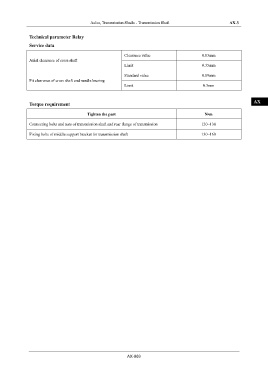

Axles, Transmission Shafts - Transmission Shaft AX-3
Technical parameter Relay IN
Service data
DI
Clearance value 0.03mm
Axial clearance of cross shaft
Limit 0.35mm
EG
Standard value 0.09mm
Fit clearance of cross shaft and needle bearing
Limit 0.3mm TR
Torque requirement AX
Tighten the part N•m
FR
Connecting bolts and nuts of transmission shaft and rear flange of transmission 120~130
Fixing bolts of middle support bracket for transmission shaft 130~160 ST
BR
BW
EL
AX-003
