AX-4 Axles, Transmission Shafts - Transmission Shaft

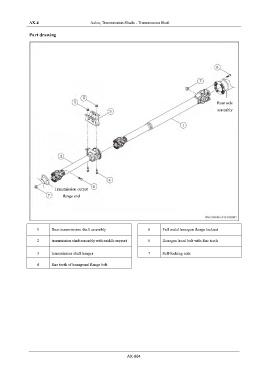

Part drawing

Rear axle
assembly

Transmission output
flange end

1 Rear transmission shaft assembly 6 Full metal hexagon flange locknut

2 transmission shaft assembly with middle support 6 Hexagon head bolt with fine teeth

3 transmission shaft hanger 7 Self-locking nuts

4 fine teeth of hexagonal flange bolt

AX-004
