P. 934
AX-22 Axles, Transmission Shafts - Front Axle

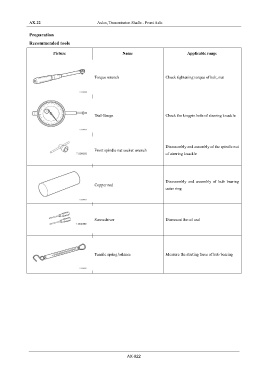

Preparation
Recommended tools
Picture Name Applicable range
Torque wrench Check tightening torque of bolt, nut
Dial Gauge Check the kingpin hole of steering knuckle
Disassembly and assembly of the spindle nut
Front spindle nut socket wrench
of steering knuckle
Disassembly and assembly of hub bearing
Copper rod
outer ring
Screwdriver Dismount the oil seal
Tensile spring balance Measure the starting force of hub bearing
AX-022
