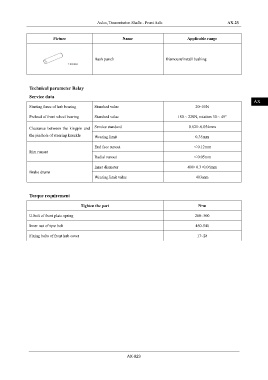

Axles, Transmission Shafts - Front Axle AX-23
IN
Picture Name Applicable range
DI
Bush punch Dismount/install bushing
EG
TR
Technical parameter Relay
Service data
AX
Starting force of hub bearing Standard value 20~55N
Preload of front wheel bearing Standard value 180 ~ 220N, rotation 30 ~ 45°
FR
Service standard 0.021~0.054mm
Clearance between the kingpin and
the pin hole of steering knuckle Wearing limit 0.35mm ST
End face runout ＜0.12mm
Rim runout BR
Radial runout ＜0.05mm
Inner diameter 400+0.3+0.06mm BW
Brake drums
Wearing limit value 403mm
EL
Torque requirement
Tighten the part N•m
U-bolt of front plate spring 260~300
Inner nut of tyre bolt 460-540
Fixing bolts of front hub cover 17~28
AX-023
