AX-82 Axles, Transmission Shafts - Rear Axle

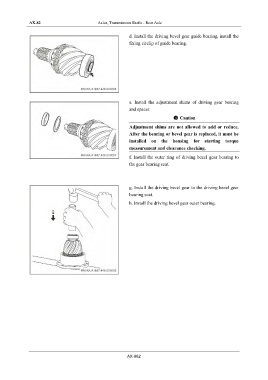

d. Install the driving bevel gear guide bearing, install the
fixing circlip of guide bearing.

e. Install the adjustment shims of driving gear bearing
and spacer.
Caution
Adjustment shims are not allowed to add or reduce.
After the bearing or bevel gear is replaced, it must be
installed on the housing for starting torque
measurement and clearance checking.

f. Install the outer ring of driving bezel gear bearing to
the gear bearing seat.

g. Install the driving bezel gear to the driving bezel gear
bearing seat.

h. Install the driving bevel gear outer bearing.
