Navigation

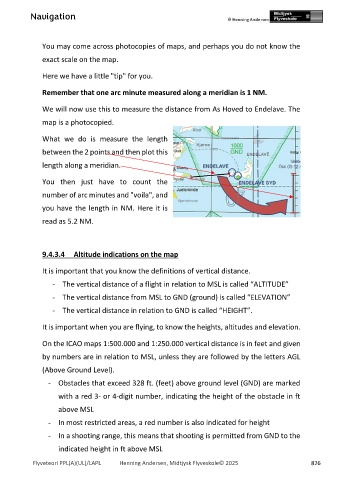

You may come across photocopies of maps, and perhaps you do not know the

exact scale on the map.

Here we have a little "tip" for you.

Remember that one arc minute measured along a meridian is 1 NM.

We will now use this to measure the distance from As Hoved to Endelave. The

map is a photocopied.

What we do is measure the length
between the 2 points and then plot this

length along a meridian.

You then just have to count the

number of arc minutes and "voila", and

you have the length in NM. Here it is

read as 5.2 NM.

9.4.3.4 Altitude indications on the map

It is important that you know the definitions of vertical distance.

- The vertical distance of a flight in relation to MSL is called “ALTITUDE”
- The vertical distance from MSL to GND (ground) is called “ELEVATION”

- The vertical distance in relation to GND is called “HEIGHT”.

It is important when you are flying, to know the heights, altitudes and elevation.

On the ICAO maps 1:500.000 and 1:250.000 vertical distance is in feet and given

by numbers are in relation to MSL, unless they are followed by the letters AGL
(Above Ground Level).

- Obstacles that exceed 328 ft. (feet) above ground level (GND) are marked

with a red 3- or 4-digit number, indicating the height of the obstacle in ft

above MSL

- In most restricted areas, a red number is also indicated for height

- In a shooting range, this means that shooting is permitted from GND to the

indicated height in ft above MSL
