Constructing a CCC Chart 333

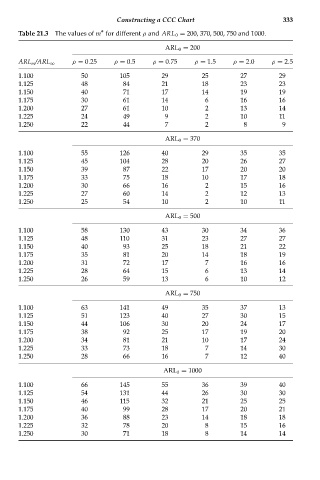

Table 21.3 The values of m* for different ρ and ARL 0 = 200, 370, 500, 750 and 1000.
ARL 0 = 200
ρ = 0.25 ρ = 0.5 ρ = 0.75 ρ = 1.5 ρ = 2.0 ρ = 2.5
ARL m /ARL ∞
1.100 50 105 29 25 27 29
1.125 48 84 21 18 23 23
1.150 40 71 17 14 19 19
1.175 30 61 14 6 16 16
1.200 27 61 10 2 13 14
1.225 24 49 9 2 10 11
1.250 22 44 7 2 8 9

ARL 0 = 370
1.100 55 126 40 29 35 35
1.125 45 104 28 20 26 27
1.150 39 87 22 17 20 20
1.175 33 75 18 10 17 18
1.200 30 66 16 2 15 16
1.225 27 60 14 2 12 13
1.250 25 54 10 2 10 11
ARL 0 = 500
1.100 58 130 43 30 34 36
1.125 48 110 31 23 27 27
1.150 40 93 25 18 21 22
1.175 35 81 20 14 18 19
1.200 31 72 17 7 16 16
1.225 28 64 15 6 13 14
1.250 26 59 13 6 10 12
ARL 0 = 750
1.100 63 141 49 35 37 13
1.125 51 123 40 27 30 15
1.150 44 106 30 20 24 17
1.175 38 92 25 17 19 20
1.200 34 81 21 10 17 24
1.225 33 73 18 7 14 30
1.250 28 66 16 7 12 40
ARL 0 = 1000
1.100 66 145 55 36 39 40
1.125 54 131 44 26 30 30
1.150 46 115 32 21 25 25
1.175 40 99 28 17 20 21
1.200 36 88 23 14 18 18
1.225 32 78 20 8 15 16
1.250 30 71 18 8 14 14
