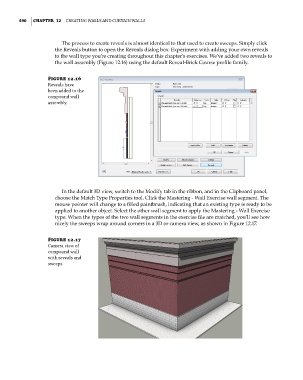

490 | ChaPTER 12 Creating Walls and Curtain Walls

The process to create reveals is almost identical to that used to create sweeps. Simply click
the Reveals button to open the Reveals dialog box. Experiment with adding your own reveals
to the wall type you’re creating throughout this chapter’s exercises. We’ve added two reveals to
the wall assembly (Figure 12.16) using the default Reveal-Brick Course profile family.

Figure 12.16
reveals have
been added to the
compound wall
assembly.

In the default 3D view, switch to the Modify tab in the ribbon, and in the Clipboard panel,
choose the Match Type Properties tool. Click the Mastering - Wall Exercise wall segment. The
mouse pointer will change to a filled paintbrush, indicating that an existing type is ready to be
applied to another object. Select the other wall segment to apply the Mastering - Wall Exercise
type. When the types of the two wall segments in the exercise file are matched, you’ll see how
nicely the sweeps wrap around corners in a 3D or camera view, as shown in Figure 12.17.

Figure 12.17
Camera view of
compound wall
with reveals and
sweeps
