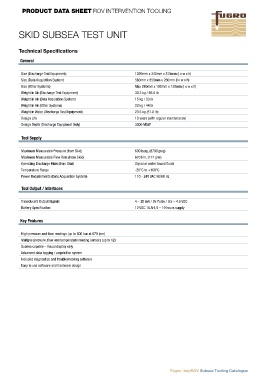

PRODUCT DATA SHEET ROV INTERVENTION TOOLING

SKID SUBSEA TEST UNIT

Technical Specifications
General

Size (Discharge Test Equipment) 1020mm x 340mm x 310mm (l x w x h)
Size (Data Acquisition System) 560mm x 350mm x 230mm (l x w x h)
Size (Other Systems) Max 280mm x 190mm x 130mm (l x w x h)
Weight in Air (Discharge Test Equipment) 30.3 kg / 66.8 lb
Weight in Air (Data Acquisition System) 15 kg / 33 lb
Weight in Air (Other Systems) 20 kg / 44 lb
Weight in Water (Discharge Test Equipment) 23.5 kg (51.8 lb)
Design Life 10 years (with regular maintenance)
Design Depth (Discharge Equipment Only) 3000 MSW
Tool Supply

Maximum Measurable Pressure (from Skid) 600 barg, (8700 psig)
Maximum Measurable Flow Rate (from Skid) 670 l/m, (177 g/m)
Operating Discharge Fluid (from Skid) Glycol or water based fluids
Temperature Range -25°C to +100°C
Power Requirements (Data Acquisition System) 110 - 240 VAC 50/60 Hz
Tool Output / Interfaces

Transducers Output Signals 4 – 20 mA / 5V Pulse / 0.5 – 4.5 VDC
Battery Specification 12 VDC 18 AH, 5 – 10 hours supply

Key Features
High pressure and flow readings (up to 600 bar at 670 lpm)
Multiple pressure, flow and temperature reading sensors (up to 12)
Subsea capable – Visual display only
Advanced data logging / acquisition system
Included diagnostics and troubleshooting software
Easy to use software and hardware design
