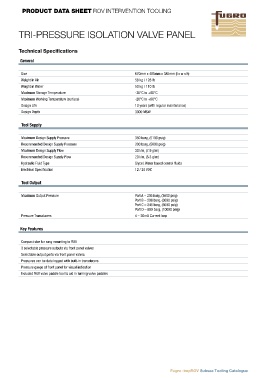

PRODUCT DATA SHEET ROV INTERVENTION TOOLING
TRI-PRESSURE ISOLATION VALVE PANEL
Technical Specifications
General
Size 670mm x 485mm x 385mm (l x w x h)
Weight in Air 58 kg / 128 lb
Weight in Water 50 kg / 110 lb
Maximum Storage Temperature -30°C to +60°C
Maximum Working Temperature (surface) -20°C to +60°C
Design Life 10 years (with regular maintenance)
Design Depth 3000 MSW
Tool Supply
Maximum Design Supply Pressure 350 barg, (5100 psig)
Recommended Design Supply Pressure 300 barg, (5000 psig)
Maximum Design Supply Flow 30 l/m, (7.9 g/m)
Recommended Design Supply Flow 20 l/m, (5.3 g/m)
Hydraulic Fluid Type Glycol, Water based control fluids
Electrical Specification 12 / 24 VDC
Tool Output
Maximum Output Pressure Port A – 206 barg, (3000 psig)
Port B – 206 barg, (3000 psig)
Port C – 345 barg, (5000 psig)
Port D – 690 barg, (10000 psig)
Pressure Transducers 4 – 20mA Current loop
Key Features
Compact size for easy mounting to ROV
3 selectable pressure outputs via front panel valves
Selectable output ports via front panel valves
Pressures can be data logged with built-in transducers
Pressure gauge at front panel for visual indication
Included ROV valve paddle tool to aid in turning valve paddles
