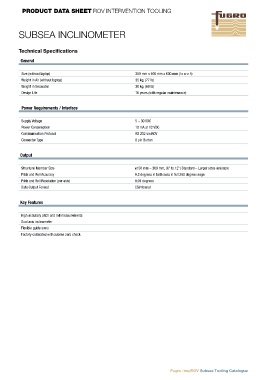

PRODUCT DATA SHEET ROV INTERVENTION TOOLING
SUBSEA INCLINOMETER
Technical Specifications
General
Size (without laptop) 350 mm x 400 mm x 600 mm (l x w x h)
Weight in Air (without laptop) 35 kg, (77 lb)
Weight in Seawater 30 kg, (66 lb)
Design Life 10 years (with regular maintenance)
Power Requirements / Interface
Supply Voltage 5 – 30 VDC
Power Consumption 10 mA at 12 VDC
Communication Protocol RS 232 via ROV
Connector Type 8 pin Burton
Output
Structural Member Size ø150 mm – 300 mm, (6” to 12”) Standard – Larger sizes available
Pitch and Roll Accuracy 0.2 degrees in both axes in full 360 degree range
Pitch and Roll Resolution (per axis) 0.01 degrees
Data Output Format CSV format
Key Features
High accuracy pitch and roll measurements
Dual axis inclinometer
Flexible guide arms
Factory calibrated with subsea zero check
