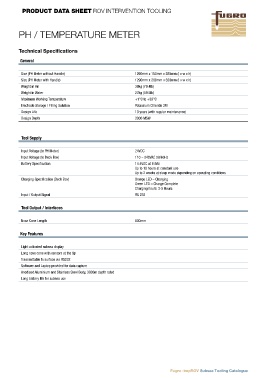

PRODUCT DATA SHEET ROV INTERVENTION TOOLING
PH / TEMPERATURE METER
Technical Specifications
General
Size (PH Meter without Handle) 1260mm x 150mm x 280mm (l x w x h)
Size (PH Meter with Handle) 1290mm x 200mm x 320mm (l x w x h)
Weight in Air 36kg (79.4lb)
Weight in Water 27kg (59.5lb)
Maximum Working Temperature +1°C to +38°C
Electrode Storage / Filling Solution Potassium Chloride 3M
Design Life 10 years (with regular maintenance)
Design Depth 3000 MSW
Tool Supply
Input Voltage (to PH Meter) 24VDC
Input Voltage (to Deck Box) 110 – 240VAC 50/60Hz
Battery Specification 14.4VDC at 6.9Ah
Up to 10 hours at constant use
Up to 2 weeks at sleep mode depending on operating conditions
Charging Specification (Deck Box) Orange LED – Charging
Green LED – Charge Complete
Charging hours: 3-5 Hours
Input / Output Signal RS 232
Tool Output / Interfaces
Nose Cone Length 800mm
Key Features
Light activated subsea display
Long nose cone with sensors at the tip
Transmittable to surface via RS232
Software and Laptop provided for data capture
Anodised Aluminium and Stainless Steel Body, 3000m depth rated
Long battery life for subsea use
