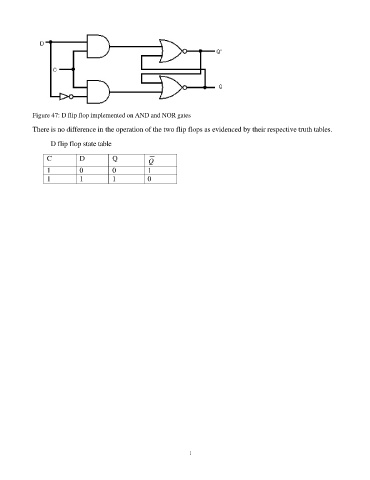

Figure 47: D flip flop implemented on AND and NOR gates
There is no difference in the operation of the two flip flops as evidenced by their respective truth tables.
D flip flop state table
C D Q Q
1 0 0 1
1 1 1 0
