User Instructions

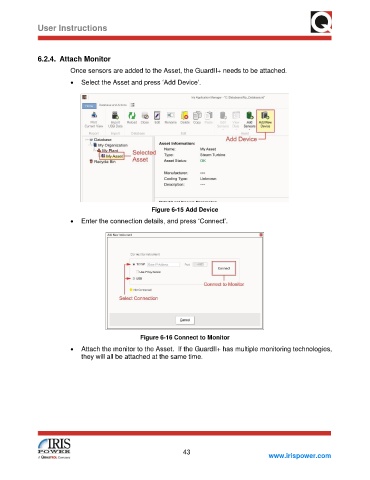

6.2.4. Attach Monitor
Once sensors are added to the Asset, the GuardII+ needs to be attached.
• Select the Asset and press ‘Add Device’.
Figure 6-15 Add Device
• Enter the connection details, and press ‘Connect’.
Figure 6-16 Connect to Monitor
• Attach the monitor to the Asset. If the GuardII+ has multiple monitoring technologies,
they will all be attached at the same time.
