P. 50
User Instructions

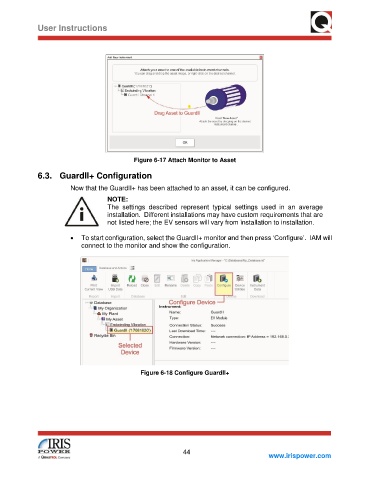

Figure 6-17 Attach Monitor to Asset
6.3. GuardII+ Configuration
Now that the GuardII+ has been attached to an asset, it can be configured.
NOTE:
The settings described represent typical settings used in an average
installation. Different installations may have custom requirements that are
not listed here; the EV sensors will vary from installation to installation.
• To start configuration, select the GuardII+ monitor and then press ‘Configure’. IAM will
connect to the monitor and show the configuration.
Figure 6-18 Configure GuardII+
44
www.irispower.com
