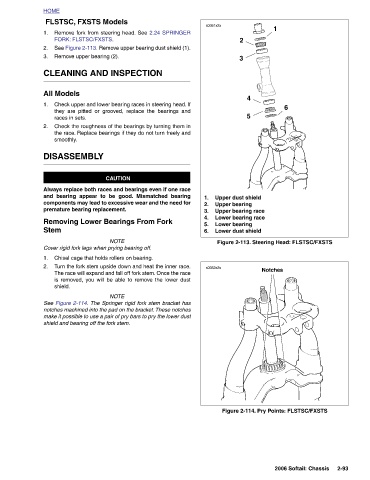

Page 742 - 2006 HARLEY FLSTCI SERVICE MANUAL

2-93

6 2006 Softail: Chassis
Notches
1 Figure 2-113. Steering Head: FLSTSC/FXSTS Figure 2-114. Pry Points: FLSTSC/FXSTS

Upper dust shield Upper bearing Lower bearing Lower dust shield
4 5
2 3 Upper bearing race Lower bearing race

s0361x2x 1. 2. 3. 4. 5. 6. s0362x2x

FLSTSC, FXSTS Models Remove fork from steering head. See 2.24 SPRINGER FORK: FLSTSC/FXSTS. See Figure 2-113. Remove upper bearing dust shield (1). Remove upper bearing (2). CLEANING AND INSPECTION Check upper and lower bearing races in steering head. If they are pitted or grooved, replace the bearings and races in sets. Check the roughness of the bearings by turning them in the race. Replace bearings if they do not turn freely and DISASSEMBLY CAUTION Always replace both races and bearings even if one race and bearing appear to be good. Mismatched bearing components may lead to excessive wear and the need for premature bearing replacement. Removi

HOME 1. 2. 3. All Models 1. 2. smoothly. Stem 1. 2. shield.
