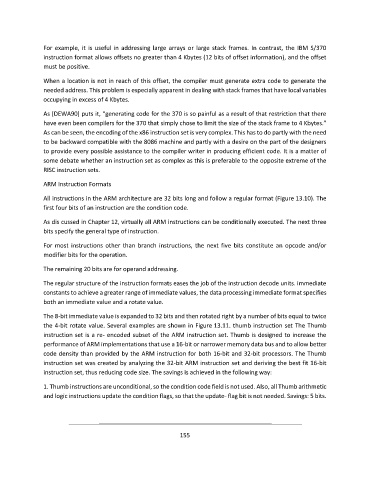

For example, it is useful in addressing large arrays or large stack frames. In contrast, the IBM S/370
instruction format allows offsets no greater than 4 Kbytes (12 bits of offset information), and the offset
must be positive.

When a location is not in reach of this offset, the compiler must generate extra code to generate the
needed address. This problem is especially apparent in dealing with stack frames that have local variables
occupying in excess of 4 Kbytes.

As [DEWA90] puts it, “generating code for the 370 is so painful as a result of that restriction that there
have even been compilers for the 370 that simply chose to limit the size of the stack frame to 4 Kbytes.”
As can be seen, the encoding of the x86 instruction set is very complex. This has to do partly with the need
to be backward compatible with the 8086 machine and partly with a desire on the part of the designers
to provide every possible assistance to the compiler writer in producing efficient code. It is a matter of
some debate whether an instruction set as complex as this is preferable to the opposite extreme of the
RISC instruction sets.

ARM Instruction Formats

All instructions in the ARM architecture are 32 bits long and follow a regular format (Figure 13.10). The
first four bits of an instruction are the condition code.

As dis cussed in Chapter 12, virtually all ARM instructions can be conditionally executed. The next three
bits specify the general type of instruction.

For most instructions other than branch instructions, the next five bits constitute an opcode and/or
modifier bits for the operation.

The remaining 20 bits are for operand addressing.

The regular structure of the instruction formats eases the job of the instruction decode units. immediate
constants to achieve a greater range of immediate values, the data processing immediate format specifies
both an immediate value and a rotate value.

The 8-bit immediate value is expanded to 32 bits and then rotated right by a number of bits equal to twice
the 4-bit rotate value. Several examples are shown in Figure 13.11. thumb instruction set The Thumb
instruction set is a re- encoded subset of the ARM instruction set. Thumb is designed to increase the
performance of ARM implementations that use a 16-bit or narrower memory data bus and to allow better
code density than provided by the ARM instruction for both 16-bit and 32-bit processors. The Thumb
instruction set was created by analyzing the 32-bit ARM instruction set and deriving the best fit 16-bit
instruction set, thus reducing code size. The savings is achieved in the following way:

1. Thumb instructions are unconditional, so the condition code field is not used. Also, all Thumb arithmetic
and logic instructions update the condition flags, so that the update- flag bit is not needed. Savings: 5 bits.
